70 cm High Power Paella Burner

Paella burners, also referred to as wheels, are used as fire diffusers, so that the fire is uniform under the paella, pan or any kitchen container.

The fire produced by the burner is easy to control and cooks safely and cleanly. Don't forget: you can use your gas burner to cook more than Paella.

We can highlight from the high power paella burner that, unlike the traditional one, its concentric tubes are flatter and flattened, this means that the ignition holes point to the sides or outwards, that is, this model of gas burner opens the fire towards the outside, which guarantees that the flame offers a better distribution of heat and at the same size as the traditional burner, it can cook with larger paella pans.

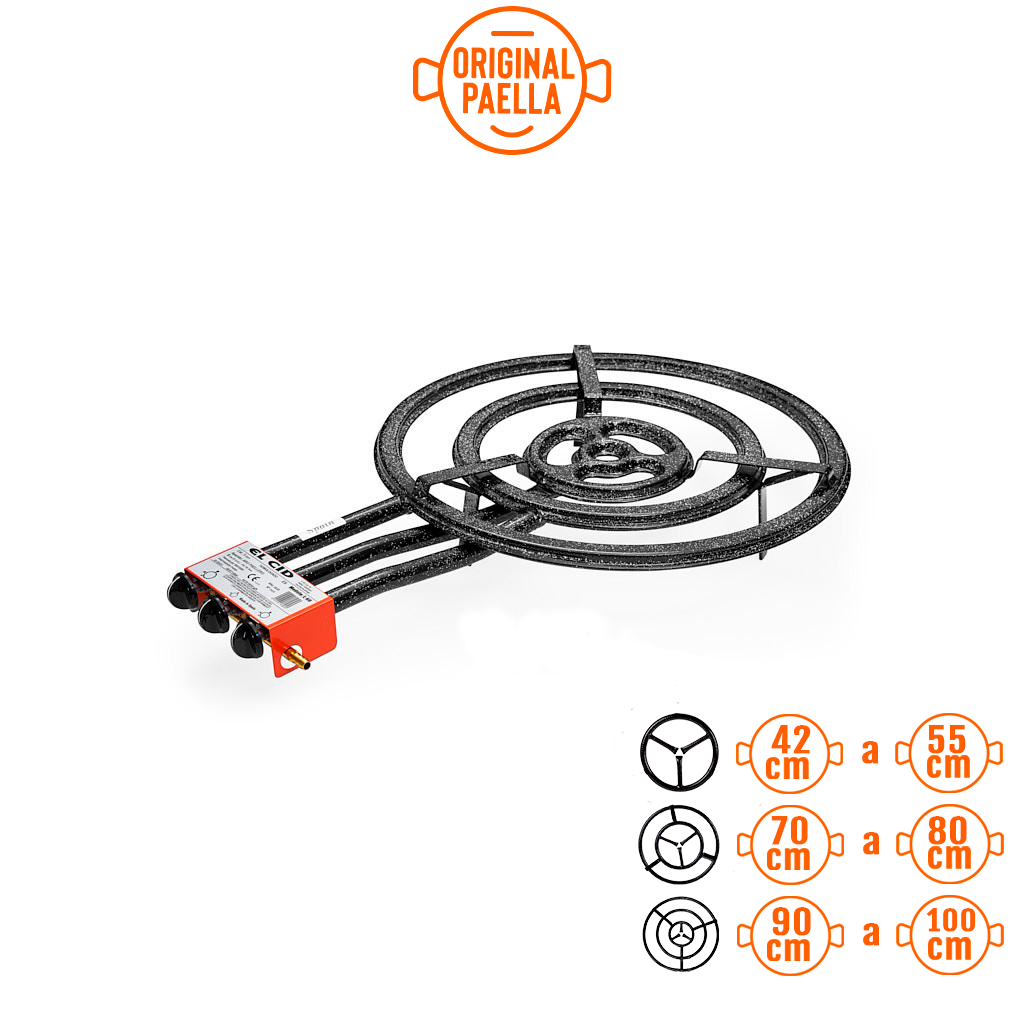

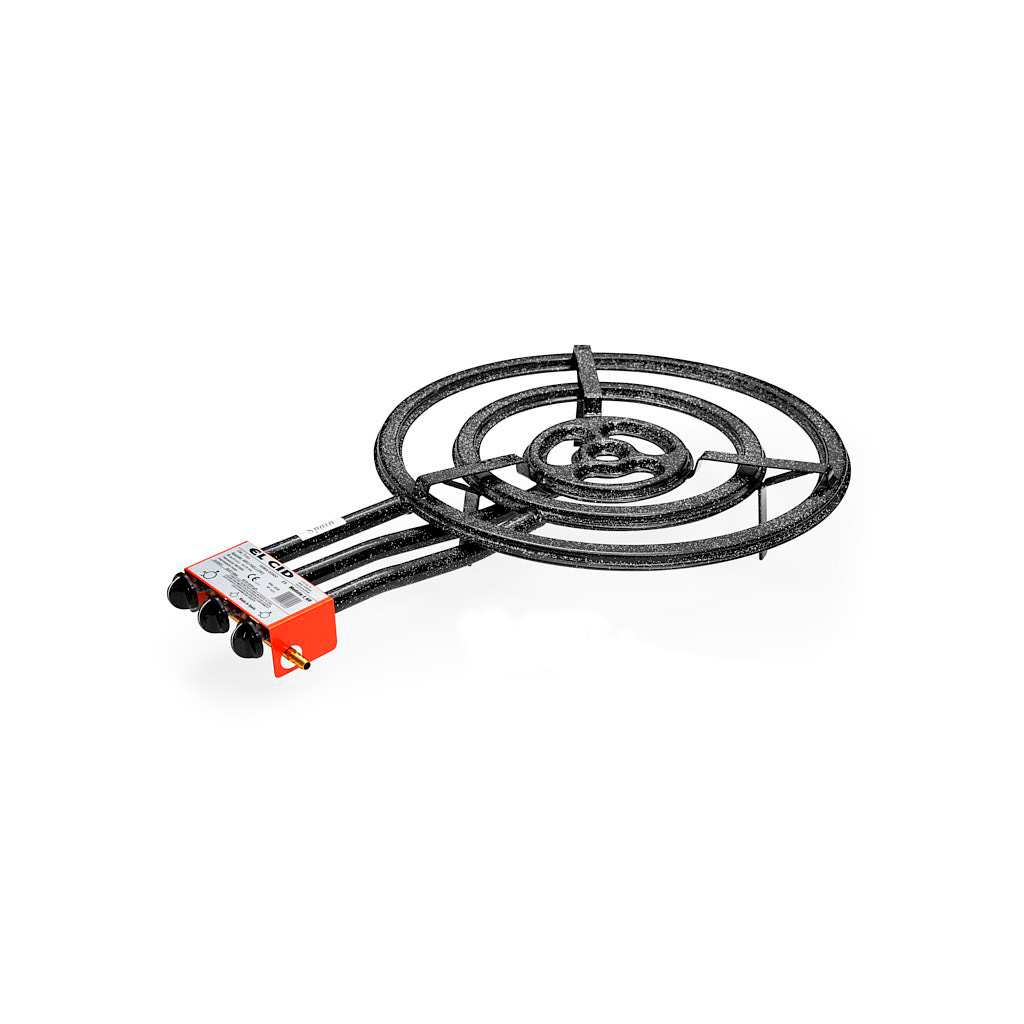

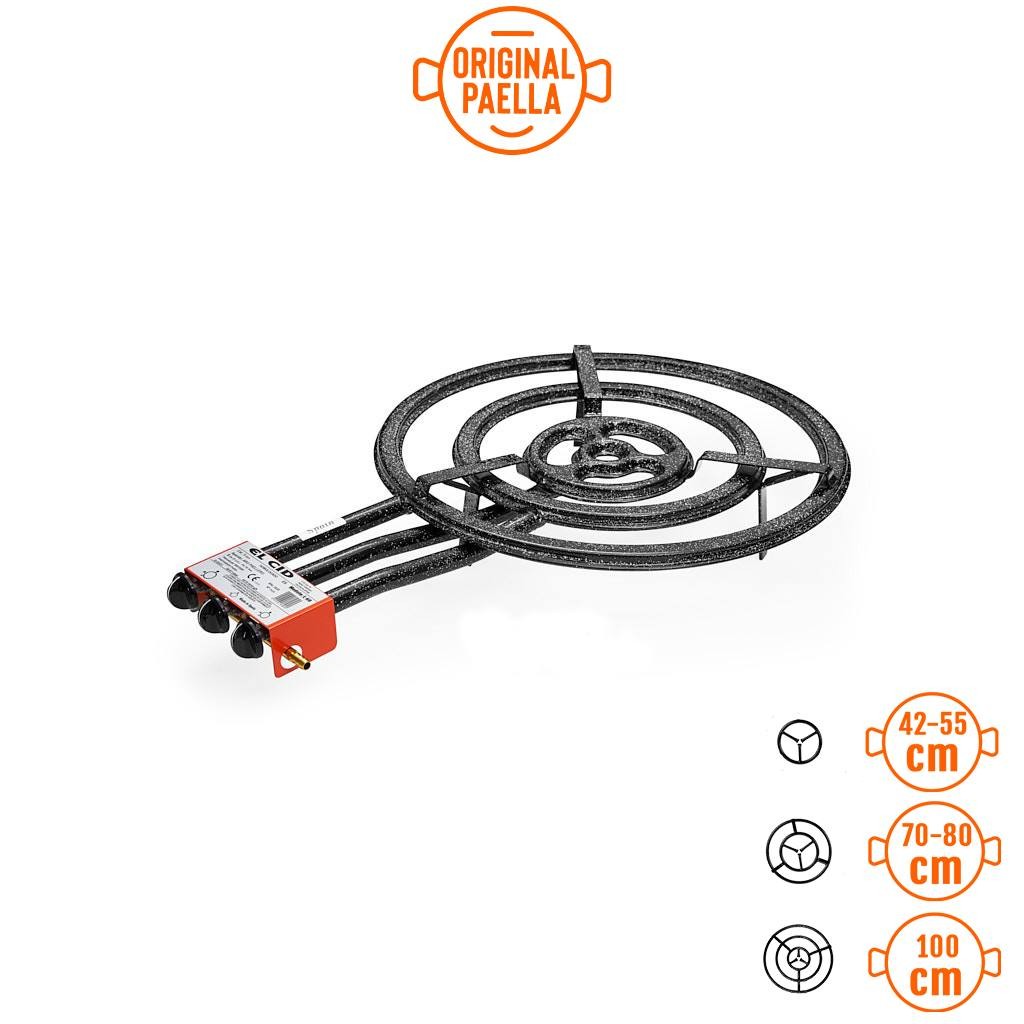

It has three concentric rings of flame, and three knobs that independently control each ring, so you can adjust the heat where and when it is needed. The outer ring is 70 cm (28 inches), the middle ring is 50 cm (20 inches) and the inner ring is 30 cm (12 inches). Inner ring features three inner spokes which ensure the heat is evenly distributed over the base of the pan. You can use the inner ring or the middle ring by itself.

These butane/propane paella pans have a layer of vitrified enamel that allows them to be easily cleaned and prevents the steel from rusting. For more information, see the maintenance tips tab.

These paella pans are suitable for natural gas or butane/propane, when placing the order, do not forget to indicate the type of gas you prefer for its operation (butane, propane or natural gas) and the country of destination in the comments section of your cart, otherwise, the order will be shipped with the burner for butane/propane gas adapted to the country of destination of the order.

Flat tube gas paella pans are approved for outdoor use.

To use it in a more comfortable and safe way, you can use our sets of legs and supports.

FEATURES:

Atmospheric gas burner with integrated support (paellero ring) for outdoor use. The appliance is designed to heat containers or plates containing liquids or food. It comes equipped with x concentric circular burners, joined together by x fixed legs, which support the whole, ensure the stability of the appliance and serve as a support for the cooking containers (paellas, griddles, frying pans, roasters, etc.).

FUNCTIONING:

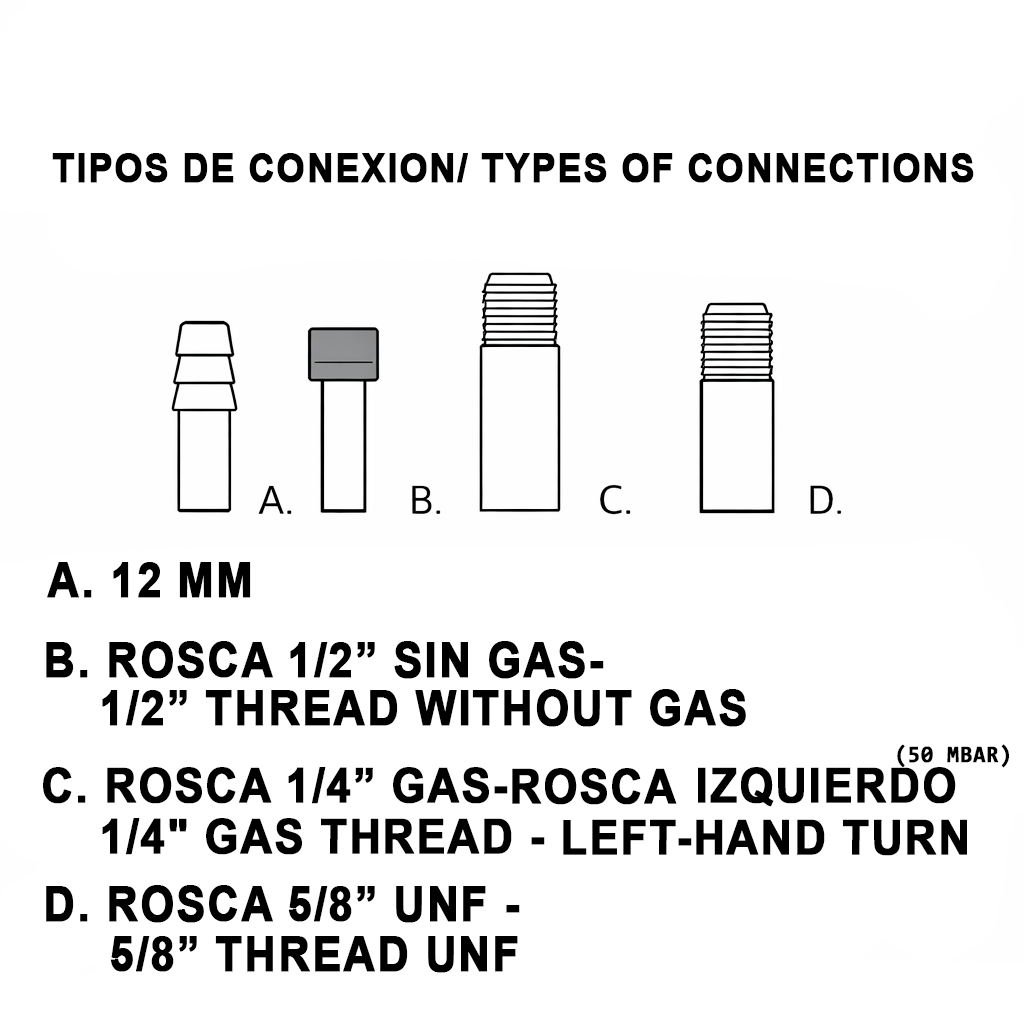

The mixture of gas and air reaches each ring-burner through a circular section tube that connects it to its corresponding valve, which is provided with a control knob. The gas supply, whether portable (cylinder) or fixed installation, must be connected through a nozzle (specific for each country) to the valves. The appliances are supplied with the connection nozzle and prepared for the type of gas of the country of destination as requested by the customer.

UTILIZATION:

The ignition of the burners is done manually, bringing a flame closer to the gas outlet holes placed on the edge of each ring. Select the appliance that suits the size of the container to be heated and prevent the flame from reaching the valve area.

We have or manufacture our burners for all countries:

Spain, Portugal, Germany, Denmark, United Kingdom, USA, Australia, Canada, Austria, Finland, France, Ireland, Greece, Belgium, Sweden, Italy, Netherlands, Switzerland, Luxembourg, Czech Republic, Norway, Cyprus, Estonia, Hungary, Lithuania, Latvia, Malta, Poland, Romania, Slovenia, Slovakia, Japan, Brazil etc. The appliances are supplied with the connection nozzle and prepared for the type of gas of the country of destination as requested by the customer.

The appliance has a CE type certificate, according to the Directive for gas appliances 2009/142/EC.

GASES THAT CAN BE USED:

DATA OF POWER AND CONSUMPTION GIVEN THE TYPE OF GAS USED:

*Consumption over fuel gross calorific value (G.C.V.).

LIST OF COMPONENTS AND USED MATERIALS:
