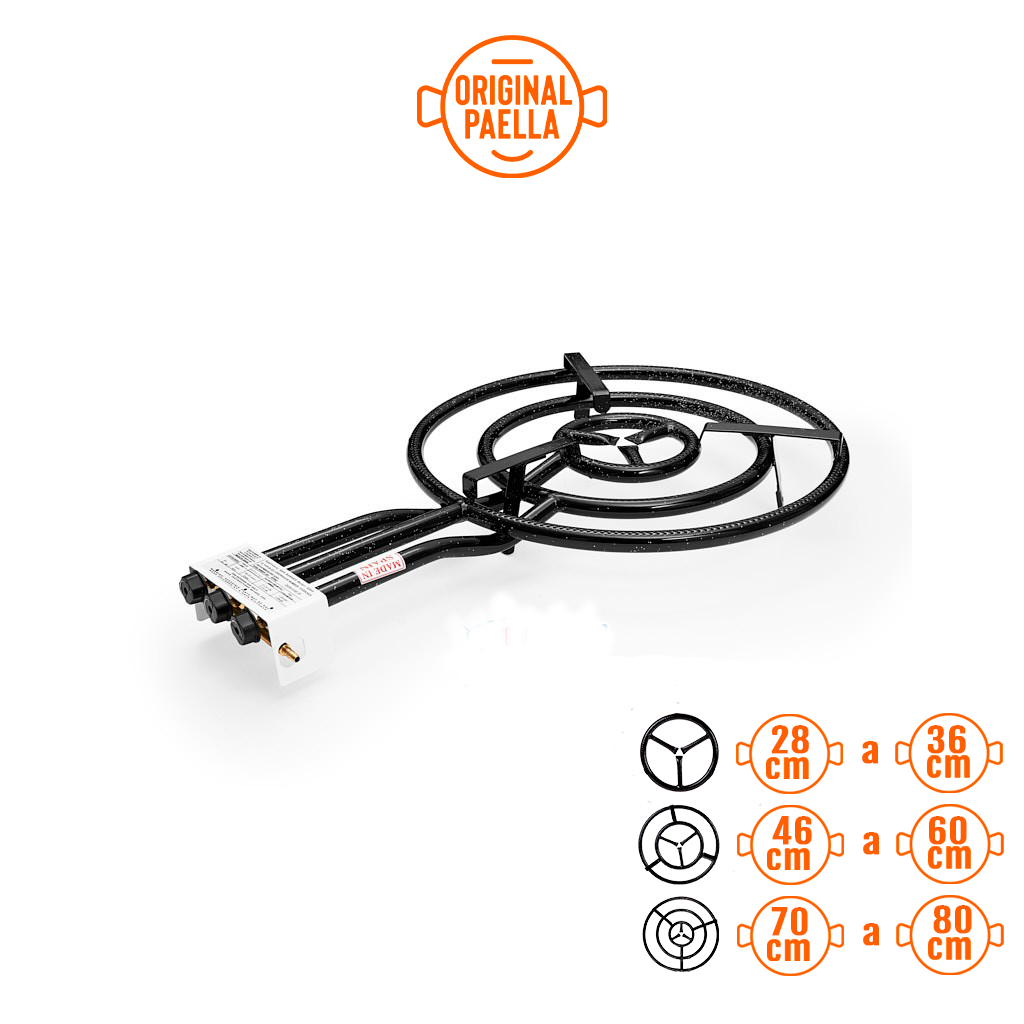

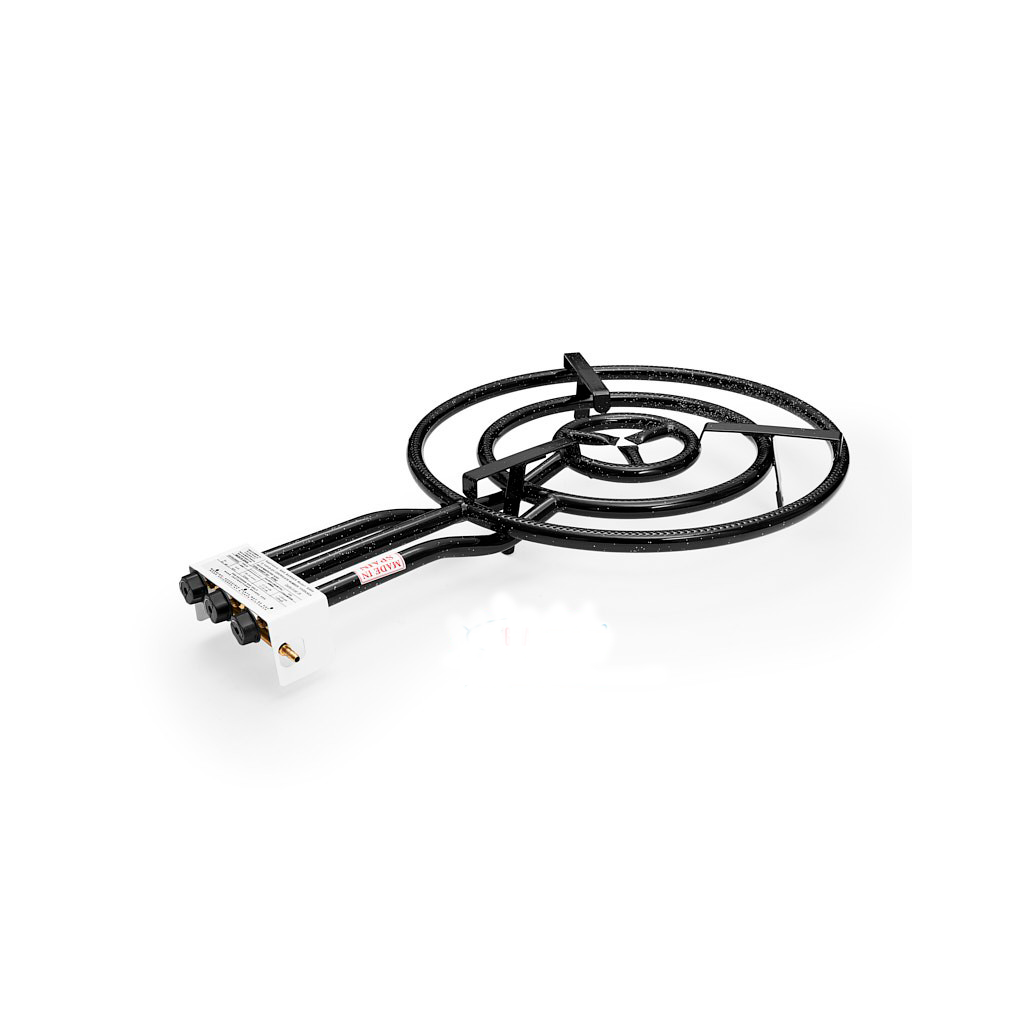

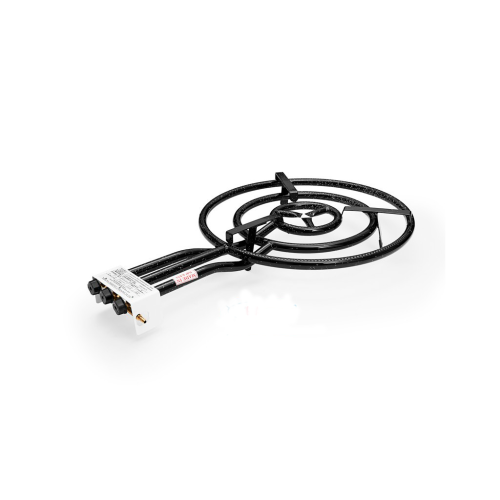

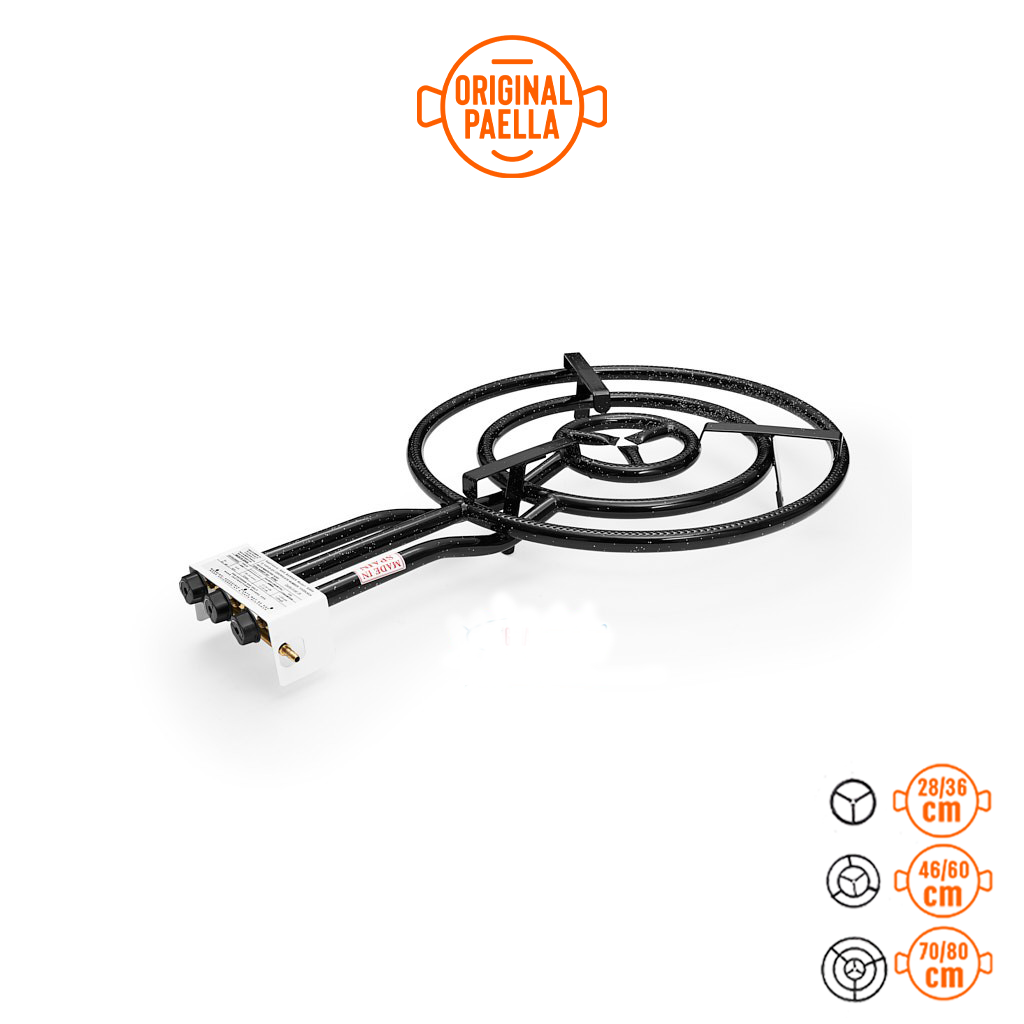

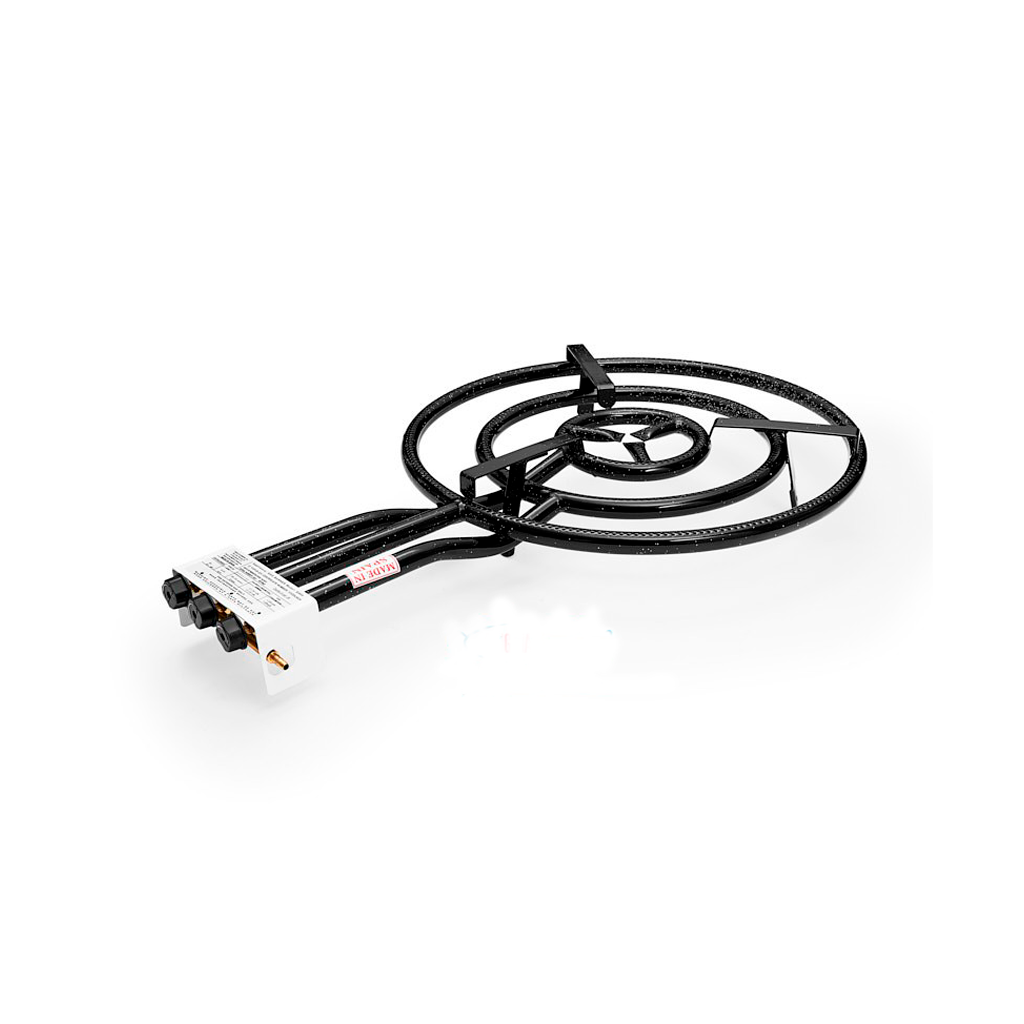

60 cm Paella Burner

  • Outside diameter Paella gas burner: 60 cm (24 inches)

  • Fire rings paella burner: 3 ring.

  • Approved for outdoor use

  • For Paella pans from 26 cm/10 inches up to 80cm/32 inches.

  • CE Certified Paella Gas Burners and are made in Valencia Spain.

  • You can find gas accessories here
Read moreShow less
€58.95 €61.90
Available
Reference:
1660
Love0
Add to wishlist
Description

Paella burners, also referred to as donuts, are used as fire diffusers, so that the fire is uniform under the paella pan, pan or any kitchen container.

The fire produced by the gas burner is easy to control and cooks safely and cleanly. Don't forget: you can use your gas burner to cook more than Paella.

This burner is the most traditional model and stands out for having round-shaped tubes, this means that its ignition holes are in a straight and vertical position around its rings, which allows direct application to the lower surface of the paella.

It has three concentric rings of flame, and three knobs that independently control each ring, so you can adjust the heat where and when it is needed. The outer ring is 60 cm (24 inches), the middle ring is 40 cm (16 inches) and the inner ring is 20 cm (8 inches). Inner ring features three inner spokes which ensure the heat is evenly distributed over the base of the pan. You can use the inner ring or the middle ring by itself.

These butane/propane paella pans have a layer of vitrified enamel that allows them to be easily cleaned and prevents the steel from rusting. For more information, see the maintenance tips tab.

These paella pans are suitable for natural gas or butane/propane/camping gas, when ordering, do not forget to indicate the type of gas you prefer for its operation (butane, propane or natural gas) and the country of destination in the comments section of your cart, otherwise, the order will be shipped with the burner for butane/propane gas adapted to the country of destination of the order.

Traditional or round tube gas paella pans are approved for outdoor use.

To use it in a more comfortable and safe way, you can use our sets of legs and supports.

FEATURES:

Atmospheric gas burner with integrated support (paellero ring) for outdoor use. The appliance is designed to heat containers or plates containing liquids or food. It comes equipped with x concentric circular burners, joined together by x fixed legs, which support the whole, ensure the stability of the appliance and serve as a support for the cooking containers (paellas, griddles, frying pans, roasters, etc.).

FUNCTIONING:

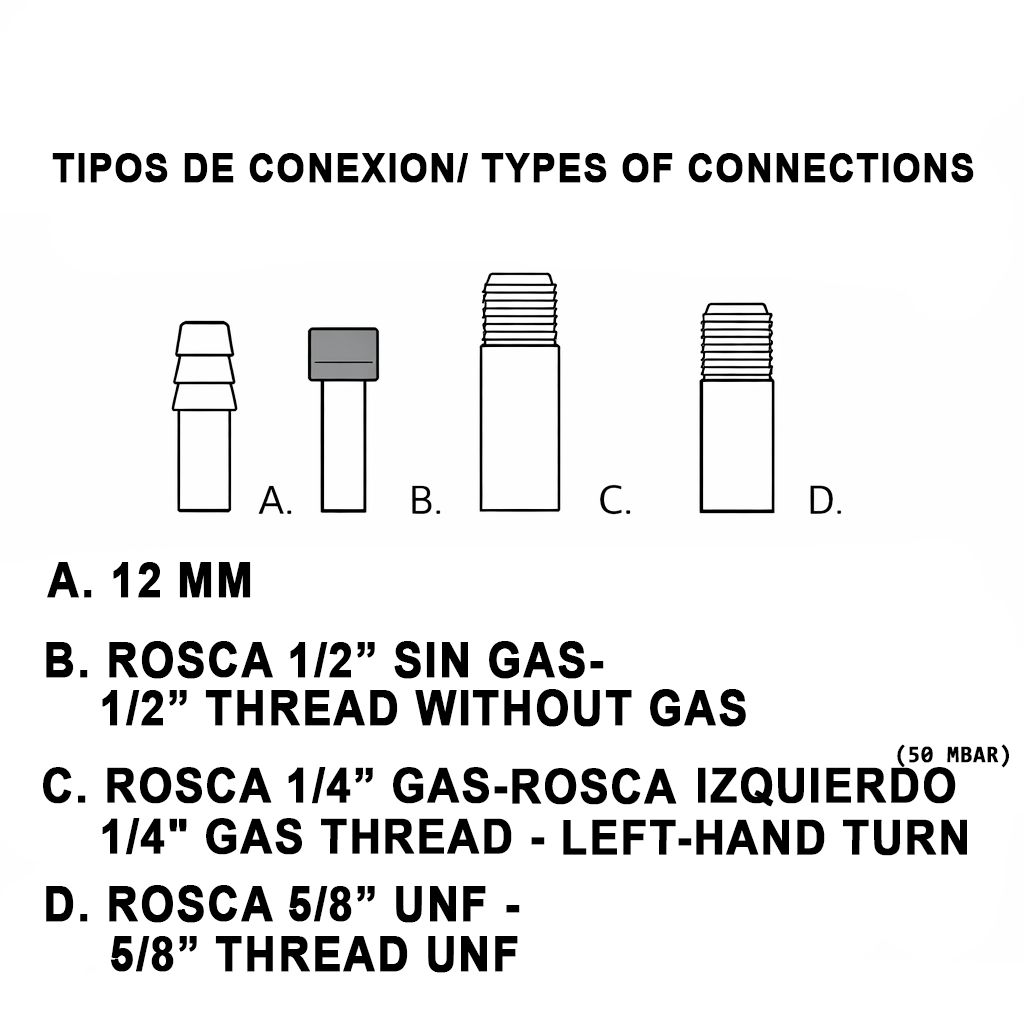

The mixture of gas and air reaches each ring-burner through a circular section tube that connects it to its corresponding valve, which is provided with a control knob. The gas supply, whether portable (cylinder) or fixed installation, must be connected through a nozzle (specific for each country) to the valves. The appliances are supplied with the connection nozzle and prepared for the type of gas of the country of destination as requested by the customer.

UTILIZATION:

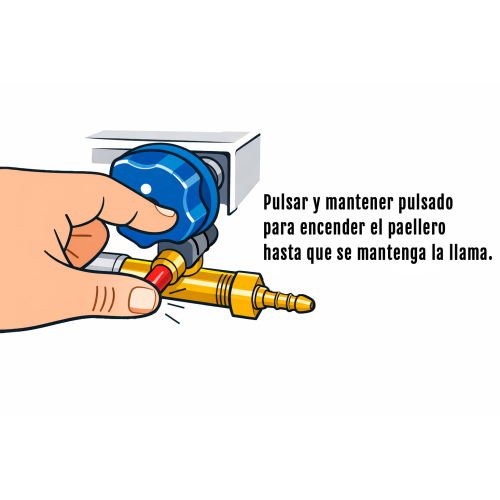

The ignition of the burners is done manually, bringing a flame closer to the gas outlet holes placed on the edge of each ring. Select the appliance that suits the size of the container to be heated and prevent the flame from reaching the valve area.

We have or manufacture our burners for all countries:

Spain, Portugal, Germany, Denmark, United Kingdom, USA, Australia, Canada, Austria, Finland, France, Ireland, Greece, Belgium, Sweden, Italy, Netherlands, Switzerland, Luxembourg, Czech Republic, Norway, Cyprus, Estonia, Hungary, Lithuania, Latvia, Malta, Poland, Romania, Slovenia, Slovakia, Japan, Brazil etc. The appliances are supplied with the connection nozzle and prepared for the type of gas of the country of destination as requested by the customer.

The appliance has a CE type certificate, according to the Directive for gas appliances 2009/142/EC.

GASES THAT CAN BE USED:

Gas Type

Gas

Pressure

Natural Gas

G-20

20 mbar

G-25

25 mbar

Butane Gas

G-30

30 mbar

G-30

50 mbar

Propane Gas

G-31

37 mbar

G-31

50 mbar

DATA OF POWER AND CONSUMPTION GIVEN THE TYPE OF GAS USED:

POWER/CONSUMPTION

Type of gas (presure)

Unit

60cm paella gas burner

POWER: CONSUMPTION  NOMINAL HEATING*

Natural gas (20 mbar)

KW

18,75

Natural gas (25 mbar)

KW

18,75

Butane Gas (28-30 mbar)

KW

19,25

Butane Gas (50 mbar)

KW

20,5

Propane Gas (30 mbar)

KW

19

Propane Gas  (37 mbar)

KW

19,25

Propane Gas  (50 mbar)

KW

17,5

GAS CONSUMPTION

Natural gas (20 mbar)

gr/h

1789

Natural gas (25 mbar)

gr/h

1789

Butane Gas (28-30 mbar)

gr/h

1399

Butane Gas (50 mbar)

gr/h

1490

Propane Gas (30 mbar)

gr/h

1354

Propane Gas (37 mbar)

gr/h

1372

Propane Gas (50 mbar)

gr/h

1247

LIST OF COMPONENTS AND USED MATERIALS:

COMPONENT

MATERIAL

Burners

Enamelled cold streched steel St-37 sheet, plain by its upper and lower sides of 24,5 x 25,5 mm and 1 mm of thickness.

Elongation tubes

Enamelled cold streched steel St-37 sheet, plain by its upper and lower sides of 24,5 x 25,5 mm and 1 mm of thickness.

Support legs

Enamelled mild steel St-37 sheet

Push on connector

Bronze, iron or aluminium

Valves and injectors

Brass BS-2.872

Protector box for gas

Cold stretched steel St‐37 sheet, of 1.15 mm of thickness, painted with epoxy paint.

Tap handles

Polyamide, zamak or aluminum.
