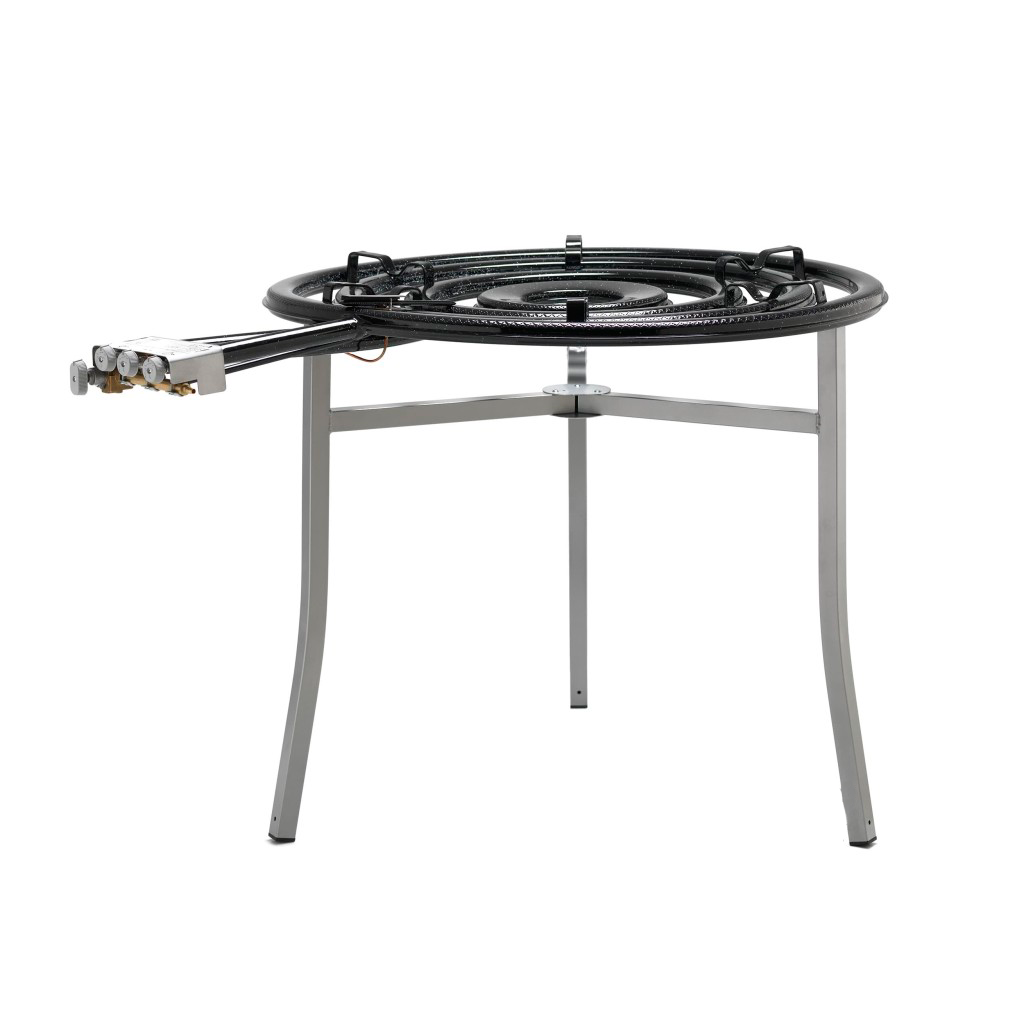

90 cm Profesional flat tube paella burner - TT900

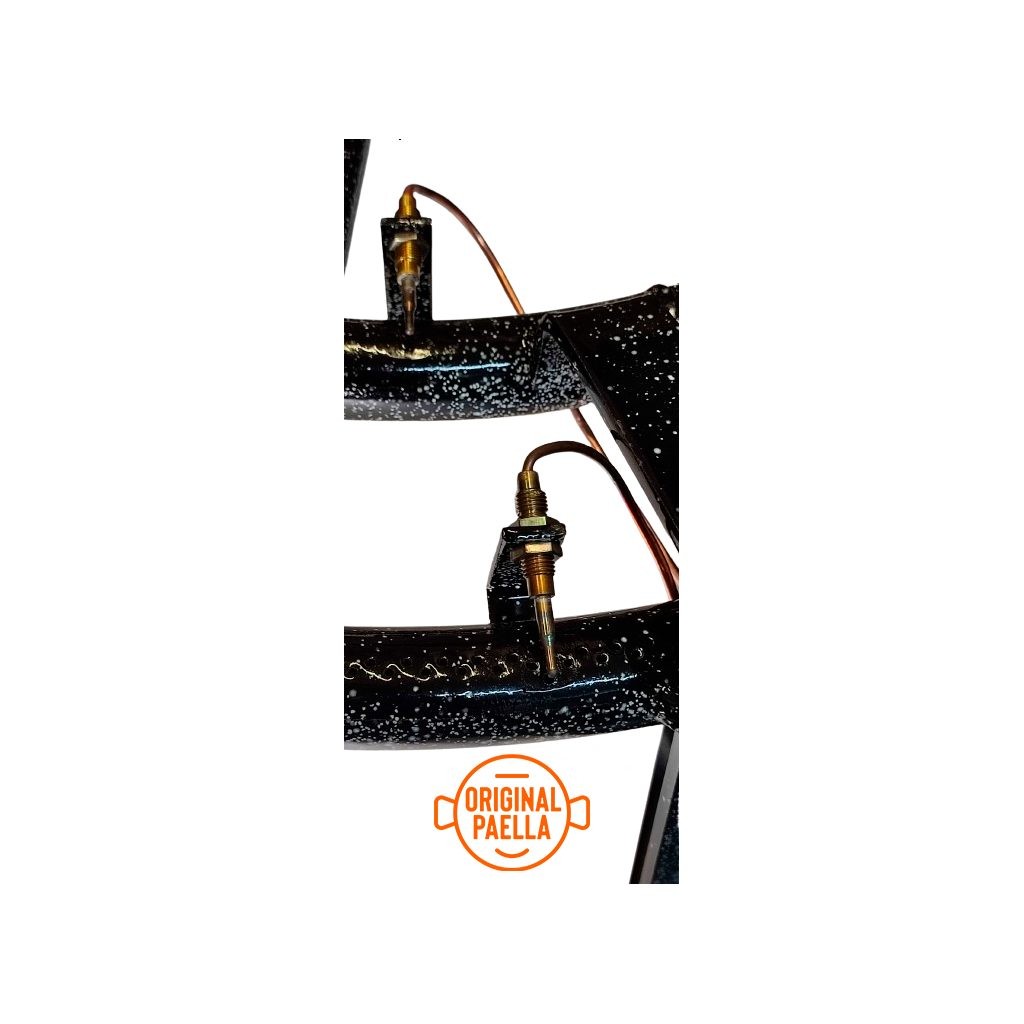

Thermocouple safety system

The professional gas paella burner is designed to distribute the flame evenly beneath a paella pan, frying pan, griddle or any other cooking vessel.

The heat is easy to control, allowing you to cook safely and cleanly. The burner can also be used to prepare dishes other than paella, including barbecued food with our cast iron griddles.

The professional paella burners are approved for indoor and outdoor use. They include a flame failure safety device with thermocouple, making them suitable for use in enclosed or semi-enclosed spaces.

It has four concentric flame rings and three control knobs that allow the rings to be operated independently, so the heat can be adjusted in the required area. The outer ring measures 90 cm, the middle ring 70 cm and the two inner rings measure 50 and 30 cm.

The inner rings, middle ring or all four rings can be used independently or simultaneously, ensuring that heat is distributed evenly across the base of the paella pan.

Its vitrified enamel coating makes it easy to clean. For further information about care and cleaning, please consult our care instructions.

The double gas connection is included with orders delivered within mainland Spain, as it is designed for Spanish gas cylinder connections. Orders delivered outside mainland Spain will not include the double connection when it is not compatible with the gas connections used in the destination country.

Features of the 90 cm professional paella burner

The 90 cm professional paella burner must be used with legs measuring at least 65 cm in height, which are included with the product.

By default, it is supplied for G-30 butane at 29 mbar and G-31 propane at 29 mbar. When configured for propane at 50 mbar, it reaches a maximum power of 41.57 kW.

Burner diameter: 90 cm.

Its robust construction, larger gas chamber and high power output make it suitable for intensive professional use and authorised indoor operation.

Professional burner systems

Pilot burner:

• Safety protection for every flame ring.
• Independent use of the rings.
• A single thermocouple.

Needle control valve:

• Designed to prevent blockages.
• Provides better flame control at both maximum and minimum power.

Patented system designed to provide:

• A greater gas flow.
• A stronger and more abundant flame.
• Lateral flame distribution.
• A longer flame reach.
• More efficient combustion.

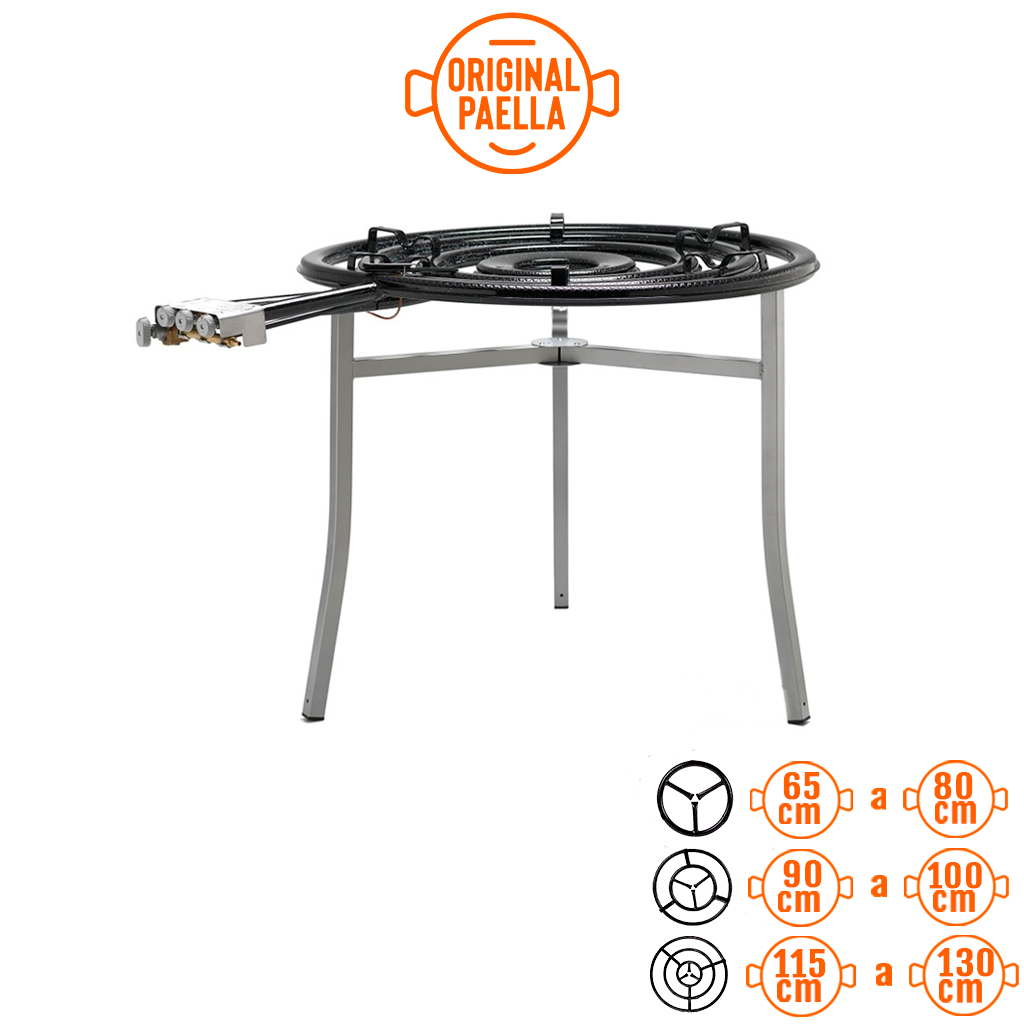

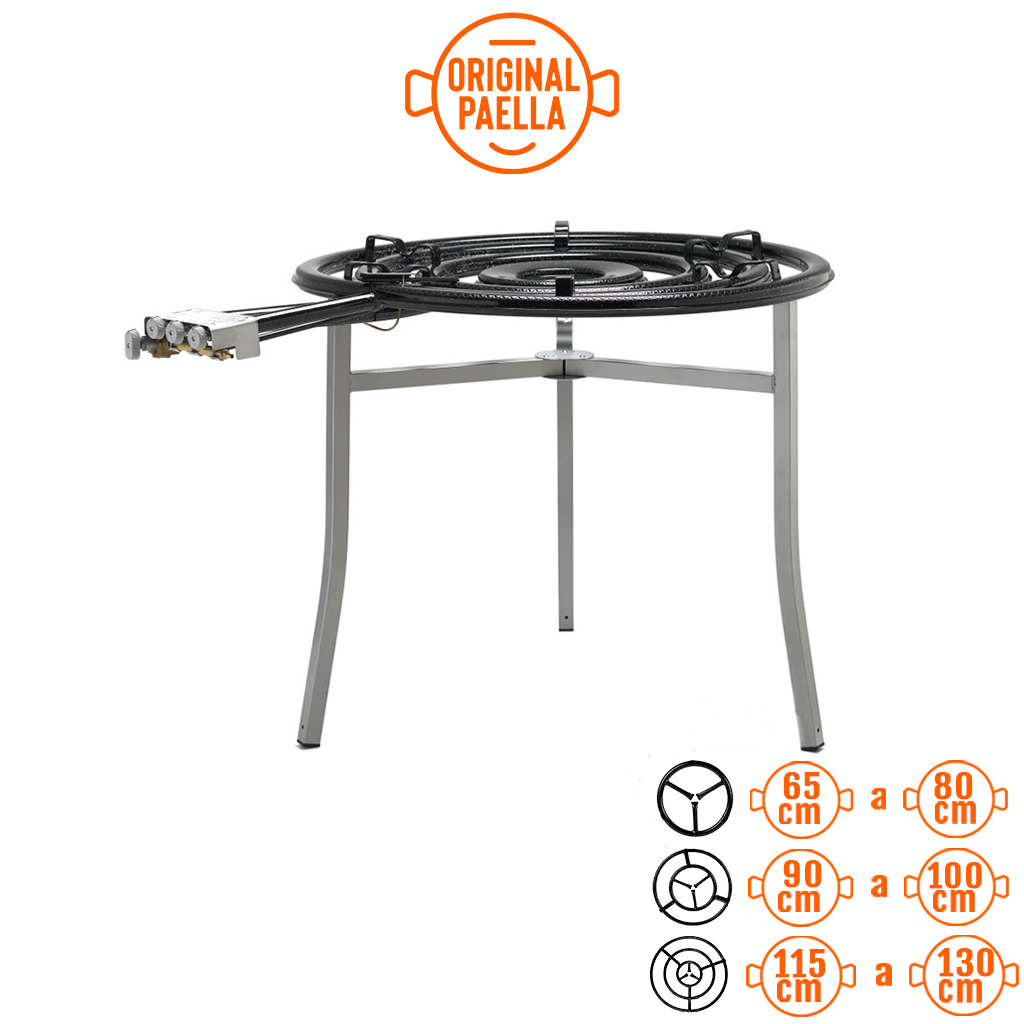

Recommended paella pan diameters

• With 2 rings lit: paella pans from 60 to 80 cm and vessels with a capacity of 50 to 150 litres.
• With 3 rings lit: paella pans from 90 to 115 cm and vessels with a capacity of 150 to 200 litres.
• With 4 rings lit: paella pans from 100 to 150 cm and vessels with a capacity of 200 to 250 litres.

Burner design and operation

This atmospheric gas burner has an integrated support and is suitable for indoor and outdoor use. It is designed to heat cooking vessels or griddles containing liquids or food.

It is equipped with four concentric circular burners connected by three fixed legs. These legs support the unit, ensure its stability and provide a base for cooking vessels such as paella pans, griddles, frying pans and roasting plates.

Operation:

The gas and air mixture reaches each burner ring through a circular-section tube connected to its corresponding valve and control knob.

The gas supply, whether from a portable cylinder or a fixed installation, must be connected to the valves using a connector specifically adapted to the destination country. The burner is supplied with the appropriate connection and prepared for the type of gas requested by the customer.

Use:

The burner rings are lit manually by bringing a flame close to the gas outlet holes located around the edge of each ring. Select a burner suitable for the size of the cooking vessel and prevent the flame from reaching the valve area.

Compatible gases and operating pressures

We supply or manufacture burners adapted for numerous countries, including Spain, Portugal, Germany, Denmark, the United Kingdom, the United States, Australia, Canada, Austria, Finland, France, Ireland, Greece, Belgium, Sweden, Italy, the Netherlands, Switzerland, Luxembourg, the Czech Republic, Norway, Cyprus, Estonia, Hungary, Lithuania, Latvia, Malta, Poland, Romania, Slovenia, Slovakia, Japan and Brazil.

The burner is supplied with the appropriate gas connector and prepared for the gas type used in the destination country, according to the customer’s request.

The appliance has CE type certification in accordance with Gas Appliances Directive 2009/142/EC.

Power and consumption according to gas type

Maintenance, gas connections and included components

Its vitrified enamel coating allows it to be cleaned easily. For further information, please consult our care instructions.

A section of butane gas hose with a double connection that allows two cylinders to be connected simultaneously is supplied with the paella burner.

To use all four rings simultaneously at maximum performance, we recommend connecting two butane or propane cylinders. This ensures a steady and sufficient gas supply during cooking.

Includes a free reinforced tripod stand.

The 90 cm professional gas burner operates with natural gas, butane or propane. When placing your order, indicate the required gas type and destination country in the comments section of the shopping cart.

If no gas type is specified, the burner will be supplied prepared for butane or propane and adapted to the gas connections used in the destination country.

Special connections are available for every country, including the United Kingdom, the United States, France and Australia. We can also manufacture a paella gas burner adapted to your specific requirements.
